Steelmate SLC-2C Lane Change Assist System

The Steelmate SLC-2C Lane Change Assist/Blind Spot Detection System warns the driver of a vehicle in their blind spot. This greatly reduces the possibility of a fatal accident caused when overtaking or changing lanes.

How does the Steelmate SLC-2C Lane Change Assist/Blind Spot Detection System work?

BSD (Blind Spot Detection) – Up to 8 metres

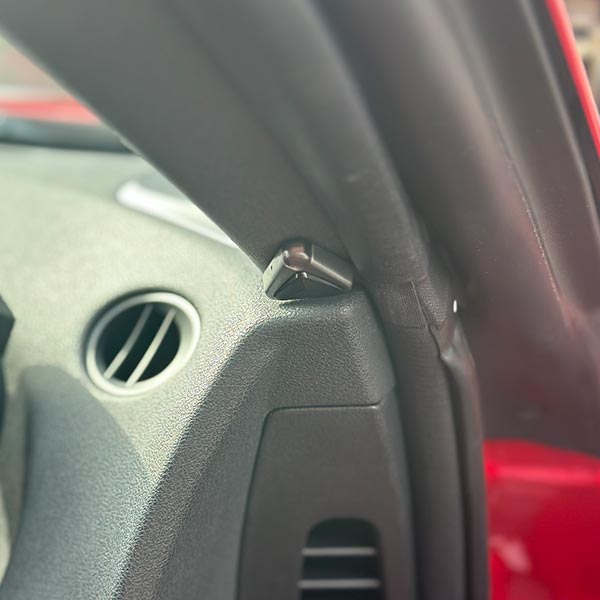

If a vehicle is detected in the blind spot when not indicating, the corresponding warning light installed on the bottom of the left/right windscreen pillar trim will solidly illuminate amber and will stay illuminated until the vehicle exits the blind spot.

If a vehicle is detected in the blind spot when indicating, the corresponding warning light installed on the bottom of the left/right windscreen pillar trim will illuminate red and an audible alert will sound until the vehicle exits the blind spot.

CVW (Closing Vehicle Warning) – Up to 30 metres

When a fast approaching (closing) vehicle is detected when not indicating, the corresponding warning light installed on the bottom of the left/right windscreen pillar trim will flash amber.

When a fast approaching (closing) vehicle is detected when indicating, the corresponding warning light installed on the bottom of the left/right windscreen pillar trim will flash red and an audible alert will sound.

Product Features:

Single-sensor design for easier installation
77GHz ultrahigh frequency detection with high resolution and fast response speed
30 meters ultra long-distance detection
IP67 waterproof compact-size sensor
2 installation methods available (license plate bracket or behind bumper adhesive bracket)
Self-test function
Multi-level detection and warning

Technical Specifications:

ECU operating voltage	9-16V
ECU operating current	<250mA (system)
Sensor operating frequency	77-79GHz
Sensor installation height	≥50cm / ≥1.6ft
Maximum detection range	≤50m / ≤164ft
Cable lengths from ECU to displays	Approx 5.9m and 7.4m

What’s Included:

1 x ECU
1 x Sensor
2 x Display
1 x Power cable
1 x Display extension cable
1 x Display cable
4 x Screw
1 x Self-adhesive bracket
1 x Adhesive
1 x Bracket
1 x Manual
