PTS400EX (DP) Dual Purpose Front Or Rear Parking Sensors

Description

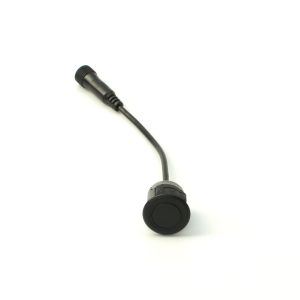

The Steelmate PTS400EX (DP) is a premium 4 sensor front or rear upgradeable parking sensor kit with push fit sensors and OEM sounding speaker. The system can be programmed to ignore tow bars, nudge bars or spare wheels. The PTS400EX (DP) is compatible with our DS1 & DS2 visual displays and can be used as a 2 sensor front or rear system if required. The sensor hole size is 19mm in diameter. The visible external diameter of the sensor head is 22.9mm with a depth of 20.1mm and they have detachable cables and the option to change sensor head angle between 4 and 10 degrees with a removable angled clip on ring which is included in the kit.

If you wish to install this kit on the front of a vehicle, a set of 2.3m sensor extension cables or 4.5m cables must be purchased.

Sensor Colour Coding

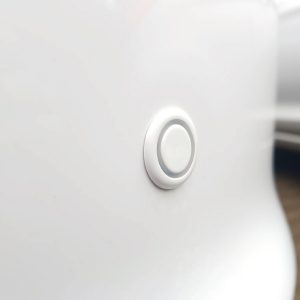

We offer a sensor colour coding service which enables the sensors to be sprayed to match the colour of your vehicle for an additional cost. Simply select ‘match my vehicle colour’ under sensor colour option above when ordering. You can enter your vehicle make, model, colour name and colour code under the order notes section at the checkout process or if you prefer let a member of our staff call you to obtain the colour code for your vehicle. The colour code can usually be found on the vehicles VIN plate or door shut.

Main Features

58K sensors for better coverage and excellent stability
5-stage audible warning buzzer with adjustable tone pitch and volume
Option of adding a visual display
Extendable stopping distance from 30cm to 50cm, ideal for vehicles with tow bars or rear mounted spare wheels and steps
A simple jumper change when installing allows you to select a front or rear system
Heavy rain proof design
All weather design (-40°C>+80°C)
Anti-false alarm patent
Easy installation

Technical Parameters

Voltage: 12/24V
Temperature: -40>+80°C
Input: <4W
Beep volume: 70>90dB
Range (Rear): 0.3>1.5m
Range (Front): 0.3>1.0m

Included In The Kit

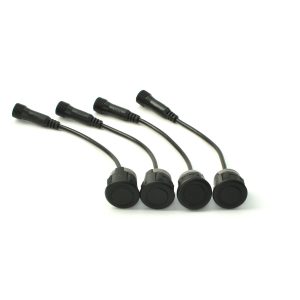

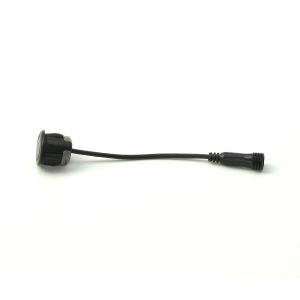

4 x 14D-15 sensor heads with 4 degree clip on heads fitted

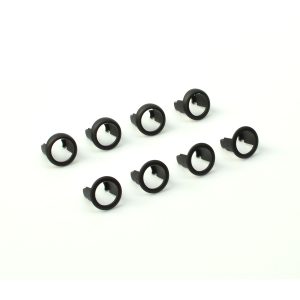

4 x 0 degree clip on heads
4 x 10 degree clip on heads

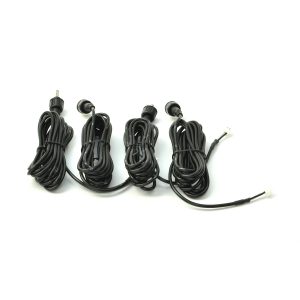

4 x 2.7m sensor cables

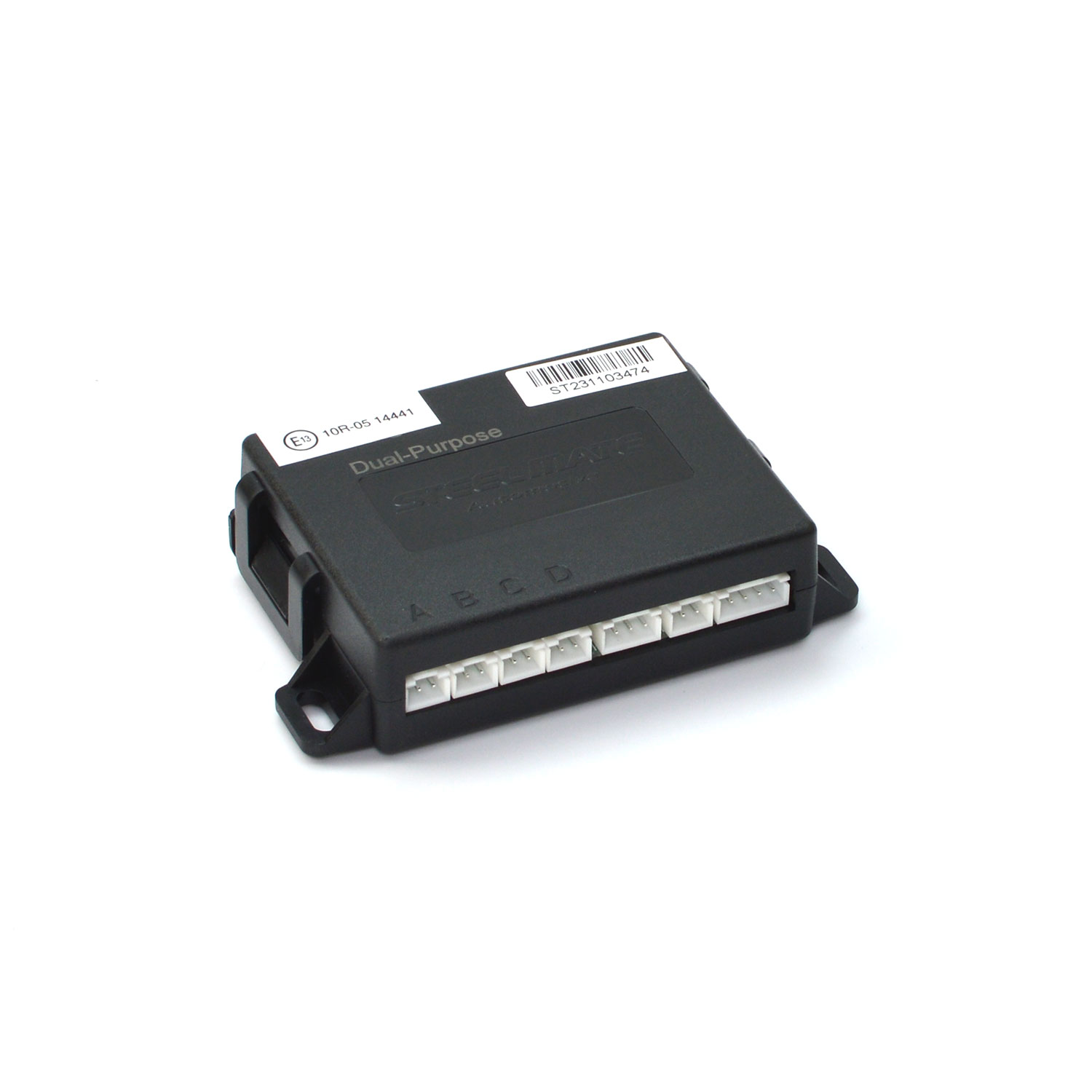

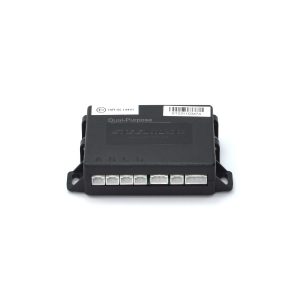

1 x ECU

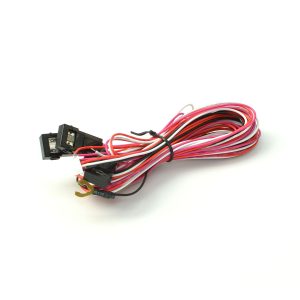

1 x Power loom

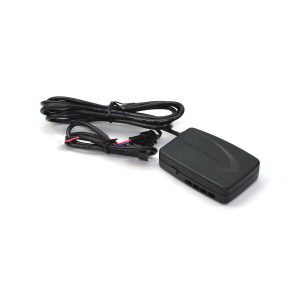

1 x Speaker
1 x 4m speaker/visual display extension cable
1 x 19mm hole saw
1 x User/installation manual
