PTS400EX (DP) OE Dual Purpose Front or Rear Flush Fit Parking Sensors

Description

Steelmate 4 sensor premium front or rear upgradeable parking sensor kit. The best parking sensor kit available, trusted by thousands. Flush fit 58K sensors and an OEM sounding speaker. Plus, the option to add a stylish DS1 or DS2 visual display. It can even be used as a 2 sensor system if required.

Key Features

✅ Front or Rear: Dual-Purpose. One kit, two modes. Simply change the jumper pin on the ECU from ‘R’ to ‘F’ and follow the corresponding wiring instructions in the manual. Out of the box the kit comes set up for rear installation with 2.7m sensor cables included. In rear mode the kits detection range is 0.3>1.5m activated by selecting reverse. It can be installed on the front with an additional set of 2.3m sensor extension cables or 4.5m sensor cables to reach the ECU which should be fitted inside the vehicle. In front mode the kits detection range is 0.3>1.0m activated by pressing the brake pedal. When the brake pedal is released the kits built-in timer begins, once this runs out the kit will deactivate until the brake pedal is pressed again. Alternatively an optional CAN Bus Speed Interface can be installed so that when the vehicle speed is below 6MPH the kit activates or a manual switch can be installed. If your vehicle or the obstacle stops moving in front mode the kit will mute after 5 seconds until your vehicle or the obstacle moves again.

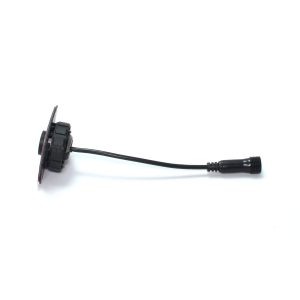

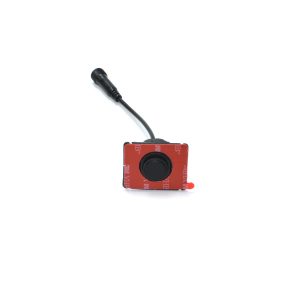

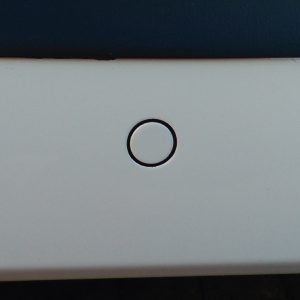

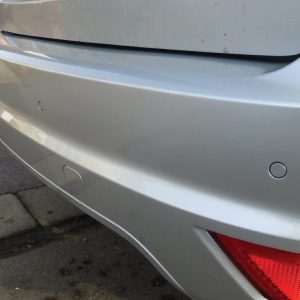

✅ Flush Fit 58K Sensor Head (14D-17): 58K frequency sensor heads offer better accuracy and performance compared to 40K. The flush fit appearance looks identical to factory fit especially when colour matched.

✅ OEM Sounding 5-stage Adjustable Speaker: A premium speaker with adjustable volume and tone that offers an OEM sound unlike cheaper alternatives.

✅ Choice of 2 Stopping Distances (Rear Only): Choose between a 50cm or 30cm stopping distance when in rear mode. Selecting the shorter distance will help you manoeuvre in and out of tighter spots.

✅ Customizable Obstacle Detection: The kit can be programmed to ignore towbars, spare wheels and even overhanging bodywork.

✅ Option of Adding a Visual Display: Choose between our DS1 or DS2 display for additional guidance so you know exactly what side an obstacle is on.

✅ Available in Matt Black: The most universal colour ready to paint or install straight off of the shelf.

✅ Can be Colour Coded: We can colour code the sensors to match the paint colour of your vehicle for a clean and sleek look for an additional cost. Select ‘match my vehicle colour’ under sensor colour option above when ordering. Please enter your vehicle make, model, colour name and colour code in the order notes section at the checkout process. The colour code can usually be found on the vehicles VIN plate or door shut. We are unable to obtain the colour code from a vehicle registration or VIN number.

What’s Included

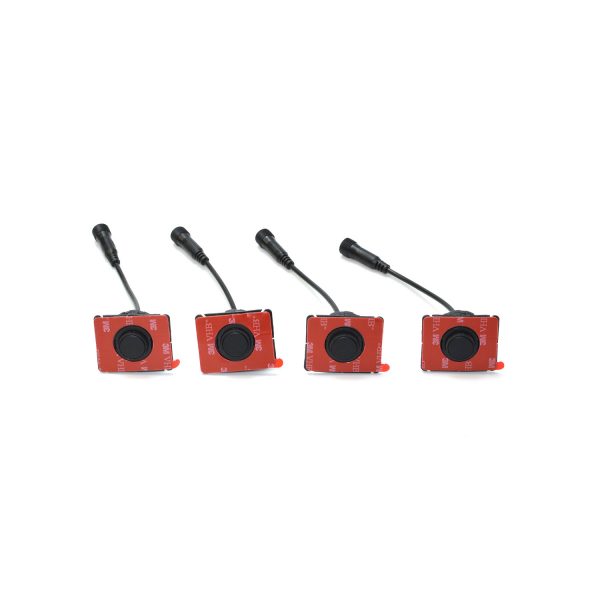

4 x 14D-17 sensor heads with flush fit mounts

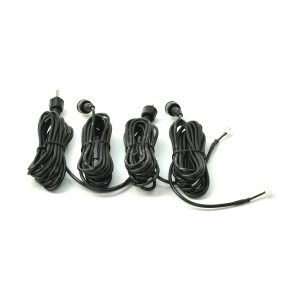

4 x 2.7m sensor cables

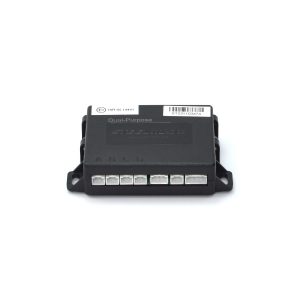

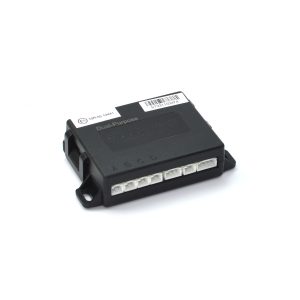

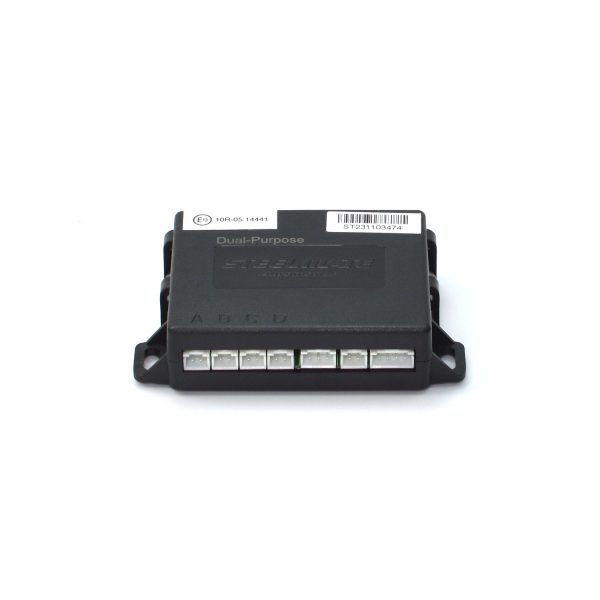

1 x ECU

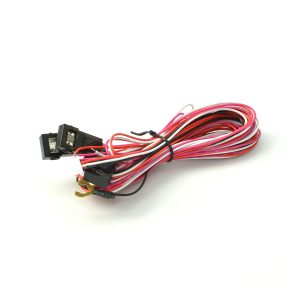

1 x Power loom
1 x Speaker

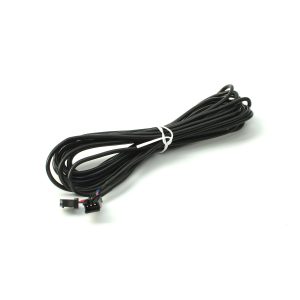

1 x 4m speaker/visual display extension cable
1 x 16mm hole punch
1 x User/installation manual

Technical Specification
