Mirror Monitor 7 Inch & Dual Camera 20m

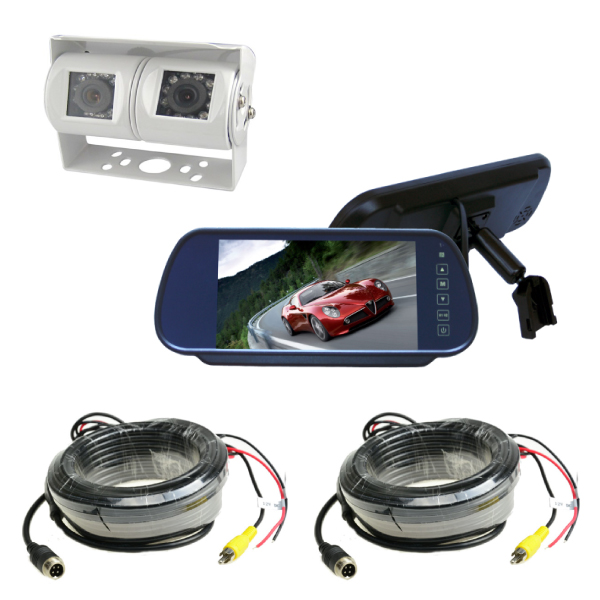

The Steelmate Automotive 7 Inch mirror monitor and camera bundle comprises of an OEM style rear view mirror monitor, with an integrated 7″ (16:9) HD LCD Screen, a universal dual white camera and 2 x 20M extension cables.

The mirror has 2 RCA inputs, one dedicated for the reversing camera view with a reverse gear signal wire enabling auto switching of the monitor to the reversing camera view. The second input is used with the other half of the dual camera which is often angled to simulate a rear mirror view and is on all the time while driving until reverse gear is selected.

Note: A mirror monitor mount or bonding kit is required to attach this mirror to your vehicles windscreen. If you have an existing mirror you will require a vehicle compatible mount and if you have no mirror you will generally need a bonding kit, unless the vehicle manufacturer has already bonded a base mount to the vehicles windscreen in which case you will require a vehicle compatible mount. Vehicle compatible mounts and bonding kits can be found here.

Main Features:

Mirror:
Screen size: 7 Inch
Display screen: TFT-LCD
Aspect resolution: 480(H) X 234(V) (7Inch)
Working voltage: DC 12V
Two RCA video inputs
Reverse trigger wire
Signal system: Auto PAL/NSTC
Remote control

Camera:
Sensor: 1/3 Sony CCD
Resolution: N:510×492 pixels P:582×510
TV line: 480TV Line
Lens: 2.8mm
Lens Angle: 120°
Min illumination: 0.01Lux (LED ON)
IR LED: 12 per camera
Night vision distance: 35ft/10m
Waterproof: IP68
Power voltage: 12v
Operation temp: -20°C – +70°C
Microphone: No
Reverse guide: No
